Hole pattern

Mode

Tool

Tool set

Modes for L’outil Insertion de symbole

Hole Pattern

Detailing

To insert a hole pattern:

Click the tool and mode.

Click to place the object, and click again to set the rotation. The first time you use the tool in a file, a properties dialog box opens. Set the default parameters. The parameters can be edited later from the Object Info palette.

Click to show/hide the parameters.Click to show/hide the parameters.

Parameter

Description

Pattern

Select a hole pattern



Number of Rows

For rectangular hole patterns, enter the number of rows

Vertical Spacing

For rectangular hole patterns, enter the vertical spacing between the rows

Number of Columns

For rectangular hole patterns, enter the number of columns

Horizontal Spacing

For rectangular hole patterns, enter the horizontal spacing between the columns

Number of Holes

For bolt circle patterns, enter the number of holes

Bolt Circle Dia.

For bolt circle patterns, enter the diameter

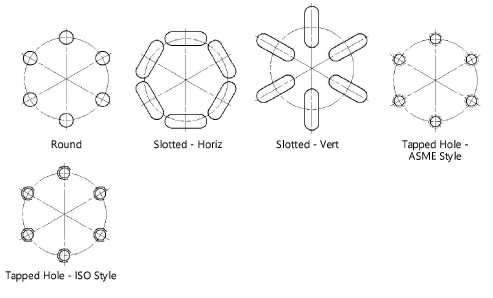

Hole Type

Select the type of holes


Hole Size

For round and tapped hole types, enter the hole size

Slot Width

For slotted hole types, enter the slot width

Slot Length

For slotted hole types, enter the slot length

Counterbore/Countersunk

Draws counterbore or countersunk holes

Diameter

Indicates the diameter of the counterbore or countersunk holes

Show Centerlines

Displays the centerlines on the pattern


View

Select the hole pattern view
